Note:
The integrated Spirit Battery Plus is sold separately. If you’re using an external battery, you’ll need the External Battery Cable.
Spirit 1.0 Plus
$2,510.00
Power
1 kW = 3hp
Integrated Battery
75 mins runtime at full throttle
Lightweight
Compact, foldable, 19kgs (42lbs) with battery
Virtually Silent
Only 55dB at full throttle
Intended Applications
Fishing, dinghies, tenders, sailboats
Warranty
3 years
Spirit 1.0 Plus
$2,510.00
All prices in $CAD
You'll receive an email when it's back in stock.
Pre-configured bundles
How do I determine the right shaft length?
Still need help? Chat with us now (icon in bottom right corner).

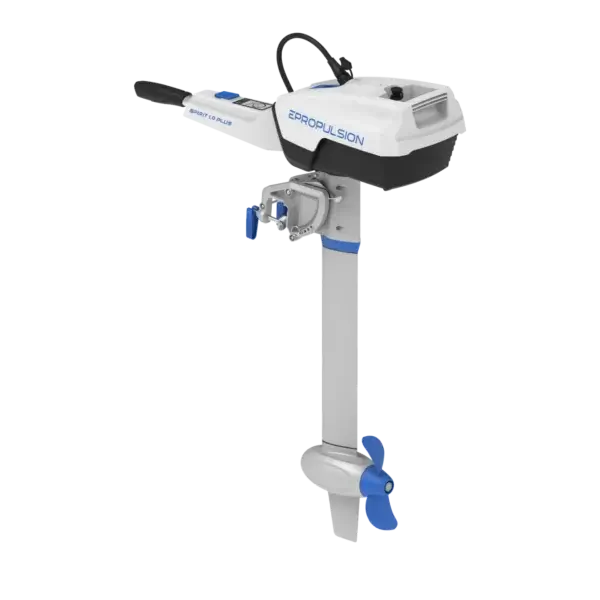

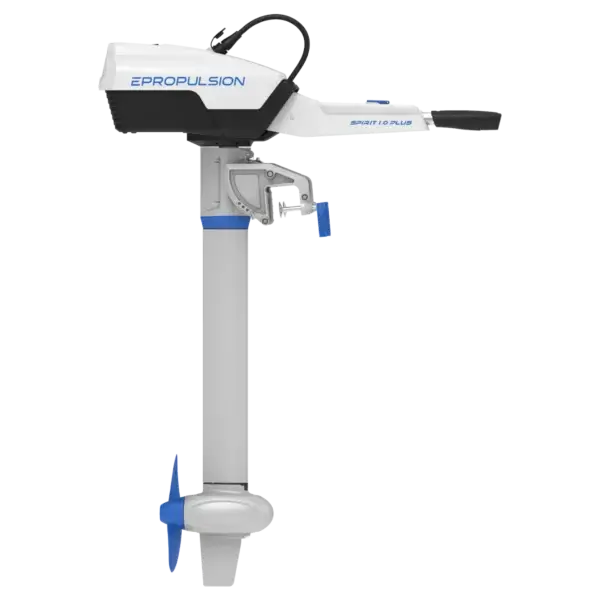

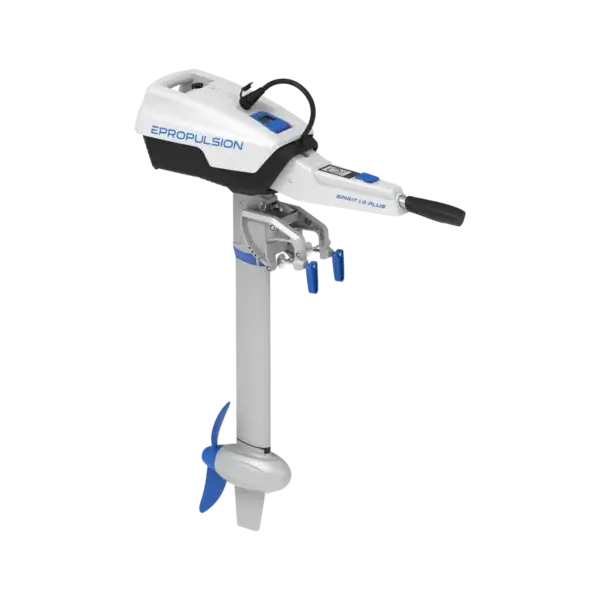

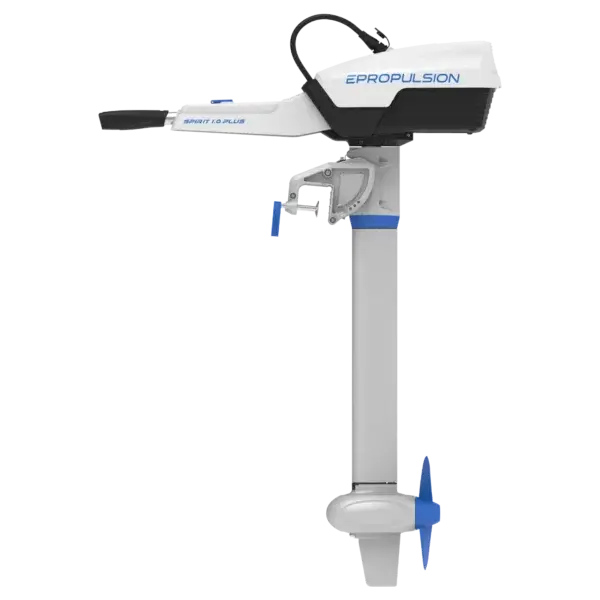

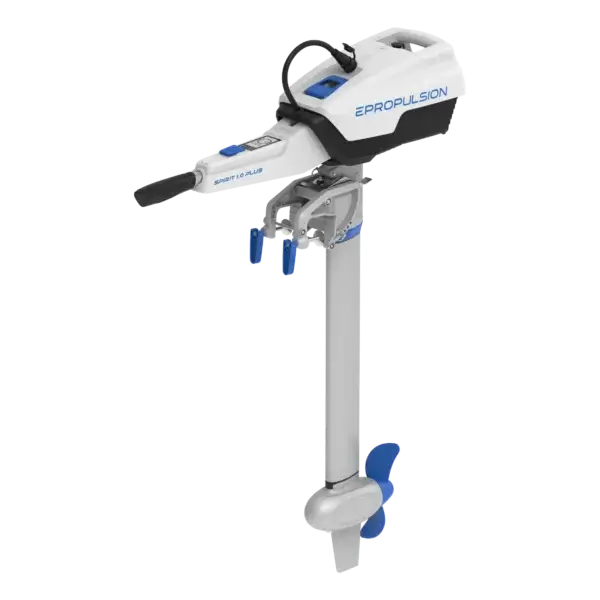

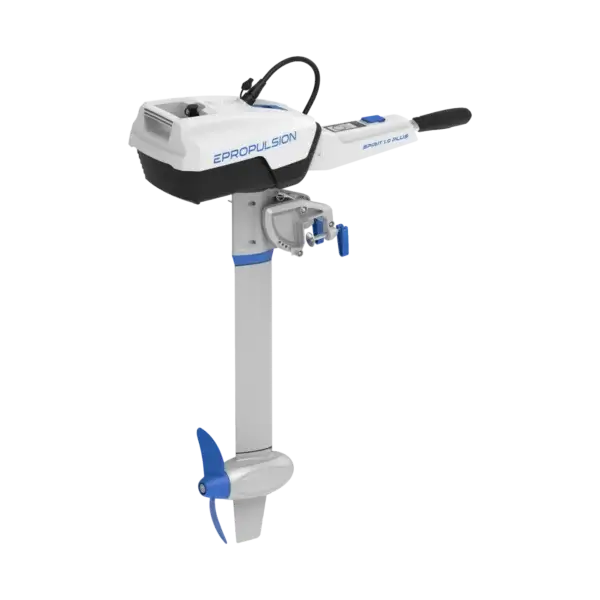

Spirit 1.0 Plus is a 1kW electric outboard (equivalent to a 3hp gas motor) made for dinghies, fishing boats, RIBs and SIBs, sailboats and tenders. It features a large 1276Wh, integrated, lithium polymer battery for long range. It’s quiet, lightweight, and clean power.
Like all ePropulsion motors, the Spirit 1.0 Plus is suitable for freshwater and saltwater, and because it requires no gasoline, it provides clean power with no emissions, no oil slicks and no noxious fumes. Stow in the trunk of your car without worry of spills or smell.
It’s also virtually silent, peaking at only 55dB on full throttle (which is as loud as a normal conversation). The Spirit 1.0 Plus is a direct drive motor so there are very few moving parts and no friction noise. This results an extremely quiet and lightweight (19kg/42lbs) motor that is virtually maintenance-free. Simply charge the battery from any standard 110V outlet or charge with the optional solar panel charger (even while motor is running) or from any 12V source with the 12V charger.
Try before you buy.
Rent per day or per week, and if you’d like to keep it, we’ll put 80% of the rental fee towards purchase.
Designed for portability.
Easy to carry. Compact, lightweight, and foldable. 20kg/44lbs including battery.
Maintenance-free.
Other than a fresh water rinse after use and keeping the electrical contacts clean, requires no regular maintenance or winterization.
No exhaust, oil slicks, emissions or fumes.
Stow in the trunk of your car without worry of spills or smell.
Suitable for freshwater and saltwater boating.
Tilt angle: 75%
4 trim angles: 0°, 7°, 14°, 21°
2-blade, 11” × 5.8” (280 mm × 147 mm) composite (nylon reinforced) propeller.
Spirit electric motors have a larger propellor than gas-driven 3HP motor because of the extreme torque from electric motors (you go faster at fewer RPMs).
3 different shaft lengths:

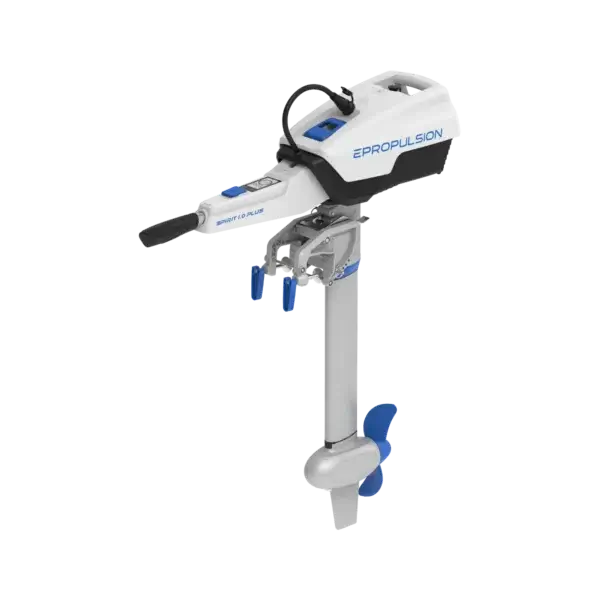

- Extra-short: 52.3cm/20.6″
- Short: 64.5cm/24.6” (most common)
- Long: 75cm/29.5”
For inflatable boats and motor boats, the short shaft is recommended. For sailboats the long shaft is usually the right one. To be sure, check out the ePropulsion guide “How to Find Your Shaft Length”.
Integrated, removable, lithium-ion polymer battery. Provides 75 minutes of full-speed runtime, 3-5 hours at cruising speeds, 10-12 hours of trolling. Chargeable from any standard 110V outlet, or can be charged with a solar panel. Batteries can be swapped out in seconds. And it floats!
Built-in tiller handle. Folds down completely, can tilt upwards slightly (not removable).
Simple stepless throttle control: the throttle hand feel is clear, smooth and enjoyable. Turn clockwise to go forward, counter-clockwise for reverse (right-handed mode).
No need to spin the motor around to go in reverse, which is the case with many small gasoline outboards.
Easy right-handed or left-handed operation (swap direction of clockwise and counterclockwise rotation).
Max power output adjustment: With a smaller full throttle power, it’s safer for kids and rental boats.
Magnetic kill switch for safety. Attach tether to the driver, if it detaches the motor shuts off.
Electric start: press one button and you’re ready to go. No more tiring pull cord start.
Digital LCD display provides current voltage, watts, battery level and remaining runtime
Anti-corrosion anodized coating and powder coating protects the base material from corrosion.
Charging port works with both AC charger and solar charger.
Battery pull latch makes battery installation easy and quick.
Videos
Integrated, removable battery.
(And it floats).
Cheap to run. No fuel costs.
- Easy: Batteries are installed and can be swapped out easily in seconds.
- Clever: battery floats if it’s accidentally dropped in the water.
- Flexible: use genuine ePropulsion batteries or other third-party 48V batteries (including e-bike batteries). Note that the Evo’s hydrogeneration feature requires genuine ePropulsion batteries.
High energy density, compact size.
- 75 minutes of runtime at full-speed (about 10km/h or 6.2 mph)
- Small decreases in speed make a huge difference in range (3-5 hours at cruising speeds, 10-15 hours of trolling).
- Exact run time depends on a variety of factors including sea conditions and hull weight and shape.
- Can use in conjunction with an external battery for greater range.
More
| Power | Speed (kph / mph) | Runtime (hh:mm) | Range (kms / miles) |
|---|---|---|---|
| 35 | 3.5 / 2.2 | 36:25 | 129 / 80 |
| 65 | 4.3 / 2.7 | 19:35 | 85.3 / 53 |
| 125 | 5.6 / 3.5 | 10:00 | 56 / 35 |
| 250 | 7.1 / 4.4 | 5:00 | 36.5 / 22 |
| 500 | 8.5 / 5.3 | 2:30 | 21.3 / 13.3 |
| 750 | 9.2 / 5.7 | 1:40 | 15.3 / 9.5 |
| 1,000 | 10 / 6.2 | 1:15 | 12.5 / 7.8 |
Performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
Frequently-Asked Questions
Do you offer financing or payment plans?
Do you offer financing or payment plans?
Yes! We have partnered with Affirm to to let you buy now and pay later. You can choose to make 4 interest-free payments every 2 weeks or monthly instalments up to 36 months. Simply choose “Affirm” as the payment method at checkout. Note that a 6% fee is added to the purchase.
What is the warranty on ePropulsion outboard motors?
What is the warranty on ePropulsion outboard motors?
All ePropulsion electric outboard motors come with a standard 2-year warranty, with an additional year of warranty protection on all models except eLite if you register your motor with ePropulsion, for a total of 3 years.
How do I determine the proper shaft length for my ePropulsion outboard?
How do I determine the proper shaft length for my ePropulsion outboard?
The shaft length you require depends on the transom height of your boat. Take a look at ePropulsion’s shaft length guide to determine which shaft length you need. The Spirit 1.0 Plus is available with an extra short, short and long shaft. The Spirit 1.0 Evo and Navy Evo series are available with a short or long shaft.
Note that shaft lengths of electric outboards are measured differently than combustion outboards, so it’s important to double-check which shaft length is ideal for your boat.
Can I return the electric motor for a refund?
Can I return the electric motor for a refund?
Electric motors can be returned for a full refund if unopened and in the original packaging, anytime within 30 days of receipt. If opened, but undamaged (subject to our inspection) and with less than 10 minutes of use, you can return it for a full refund minus a 20% restocking fee within 30 days of receipt. See the Returns and Refund Policy page for full details.
Can I try it out before purchasing?
Can I try it out before purchasing?
We have a couple options available:
- If you’re in or can get to Victoria, BC, we can arrange for a 30 minute demo during a sail on our 21′ sailboat where we have an electric outboard installed. Contact Us to book a demo.
- You can rent the motor for as long as you want with our try-before-you-buy programme. You’ll get 80% of the rental cost applied to the purchase if you decide to keep it. Learn more.
Why should I buy from Oceans EV?
Why should I buy from Oceans EV?
Our number one goal is customer satisfaction. This is why we sell only one brand of electric motors—so we can be the experts you need. If you have a problem or a question about your purchase we will continue to provide support when you need us.
Multiple ways to charge.
- Standard charger (included) plugs into standard 110V AC outlet, and takes 8.5 hours to charge from 0% to 100%.
- Fast charger charges from 0% to 100% in 3 hours.
- 12V charger can charge battery from your electric car’s battery.
- Can charge with a foldable solar panel, even while running.
- On a sunny day you could potentially run the whole day at economical speed.
- Also compatible with 3rd-party solar panels.
Technical Specs
Motor
Motor
1 KW brushless direct drive motor
Equivalent HP
3HP
Motor dimensions:
Extra short: 880mm × 273mm × 1010mm / 34.6" × 10.7" × 39.8", Short: 880mm × 273mm × 1110mm / 34.6" × 10.7" × 43.7", Long: 880mm × 273mm × 1235mm / 34.6" × 10.7" × 48.6"
Motor weight
10.6 kg / 23.4 lbs (short-shaft version)
Input voltage
39V – 60V
Nominal voltage
48V
General
Propeller
11″ × 5.8″ 2-blade composite propeller
Trim/Tilt angle
0°, 7°, 14°, 21° / 70°
Shaft length
Extra Short (52.6cm/20.7"), Short (62.5cm/24.6"), Long (75cm/29.5")
Max. noise level
55 dB
Power cable connector
Stainless steel with PVD processing
Warranty
3 years
(with product registration)
Wireless safety wristband compatible
No
Remote steering capable
No
Remote throttle capable
No
Backlit tiller display
No
Battery
Integrated battery
1,276 Wh, LiPo (Lithium-ion Polymer)
Charging time
Standard charger: 8.5 Hrs; Fast charger: 3.5 Hrs
Floating battery?
Yes
Battery weight
8.7 kg / 19.2 lbs
Charging time
Standard charger: 8.5 Hrs; Fast charger: 3.5 Hrs
External battery
Yes, E-Series battery recommended
3rd-party battery compatibility
Yes
Hydrogeneration
No
Solar charging
Yes, max. 180 W
Compatible with 3rd-party solar panels
Accessories
External Battery Cable (1.5m)
$325.00
Spirit 1.0 Charger
$230.00
Spirit 12V/24V Battery Charger
$144.00
Spirit 1.0 Motor Cowling
$148.00
Spirit Magnetic Kill Switch
$35.00
Spirit 1.0 Lock Set
$175.00
Wireless Remote Control (Top Mount)
$580.00
Spirit 1.0 Plus/Evo Bag Set
Original price was: $328.00.$310.00Current price is: $310.00.
Spirit 1.0 Plus Fast Charger
$510.00
Side Mount Control
$875.00
Evo Dual Remote Control
$990.00
Spirit 1.0 Plus Solar Charge Controller
$248.00
Spirit Battery Plus
$2,050.00
Wireless Safety Wristband
$210.00
What's in the Box
Main Part
Battery Charger
Spirit Battery Plus
Steering Lock Pin x 2
Magnetic Kill Switch x2
User manual, quality certificate and warranty card
